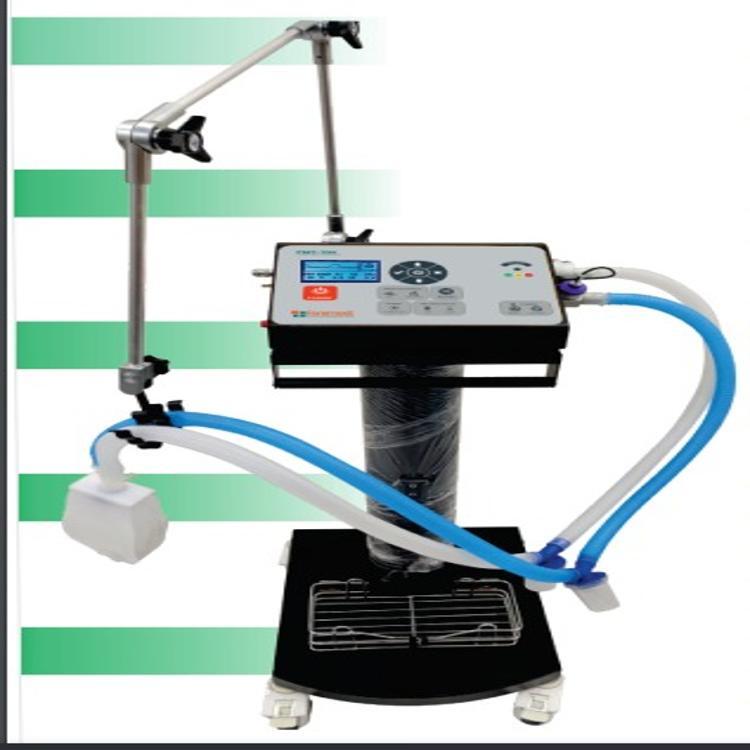

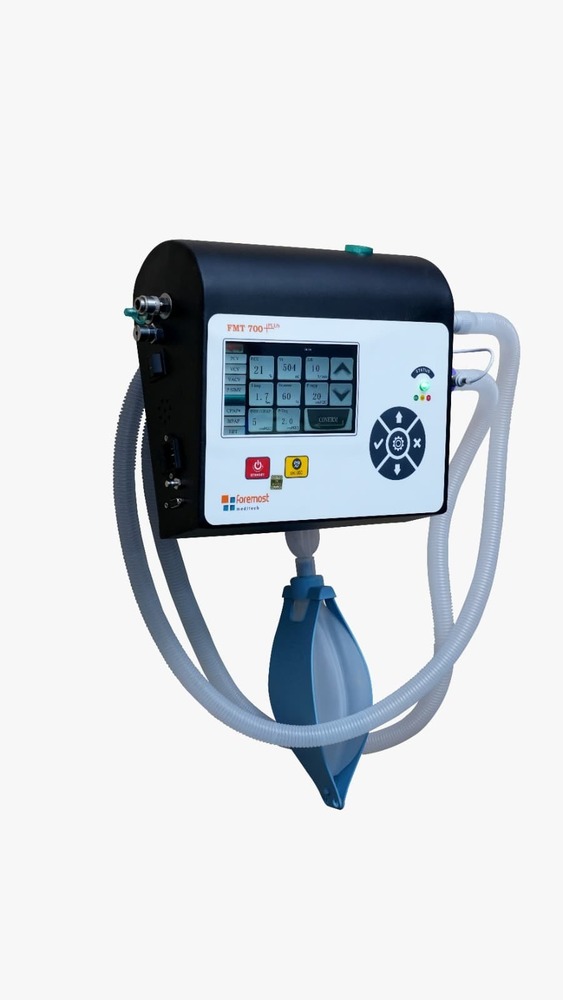

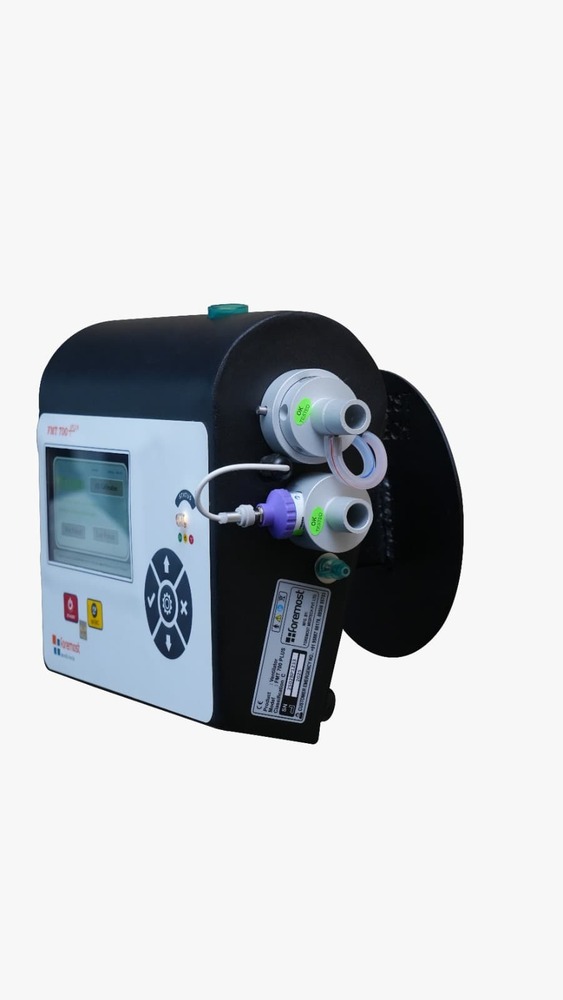

FMT 700 PLUS

About FMT 700 PLUS

Ventilator Specifications

Nebulizer
Yes Pneumatic

Display
7 inch TFT Capacitive

Available IV Modes
VCV
PCV
VACV
VSIMV
PSIMV
CPAP

Available NIV Modes
CPAP
BIPAP
HFT

Waveform Types
Volume
Pressure
Flow

Ventilation Parameters
PEEP 0 to 30 cm H2O
Pressure Support 1 to 50 cm H2O
Respiratory Rate 1 to 80 BPM
Inspiratory Pressure 5 to 100 cm H2O
High Pressure Limit
Low Pressure Limit

Controls and Operation
Keys to Operate Touch Display and Control Panel
Tidal Volume 40 to 2000 ml
Inspiratory Time 01 to 99 sec
IE Ratio 14 to 21
Trigger Pressure 05 to 20 cm H2O
FiO2 21 percent to 100 percent

Dimensions W x D x H
310 mm x 260 mm x 130 mm

Additional Features
Ex Sense 50 percent to 100 percent
Apnea Backup Yes
Detachable and Autoclavable Expiratory Valve Yes
Rechargeable Liion Battery Yes up to 12 hours backup

Ventilator Status Indication
RGB LED
Alarm Red
Patient Trigger White
Standby Red
Working Green
